I’m a little confused with wiring. The molex connector coming out of the power supply has (3) +5v red output pins but the connector at the board needs(4) +5v outputs?

All the +5V inputs are tied on the PCB side with a MVS, so you can just populate three of the pins. It's going to be fine.

Or you can double up two wires at the PSU connector side. It's standard practice, crimp two wires in one connector pin. Just be mindful of wire gauge.

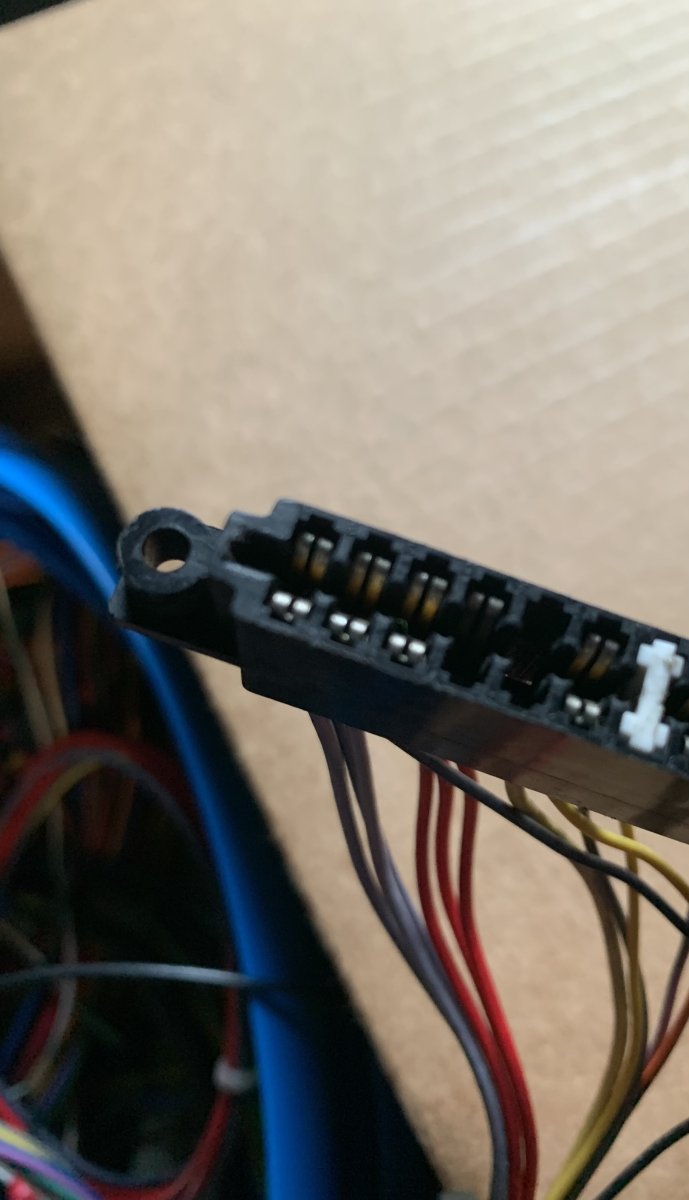

So like this is ok?





Attachments

  • E636DA84-B1A5-43E4-BB33-342524E31F65.jpeg
    78.4 KB · Views: 35
  • 47454C9E-3992-45D0-BBD8-B147AB478AFE.jpeg
    91.2 KB · Views: 40

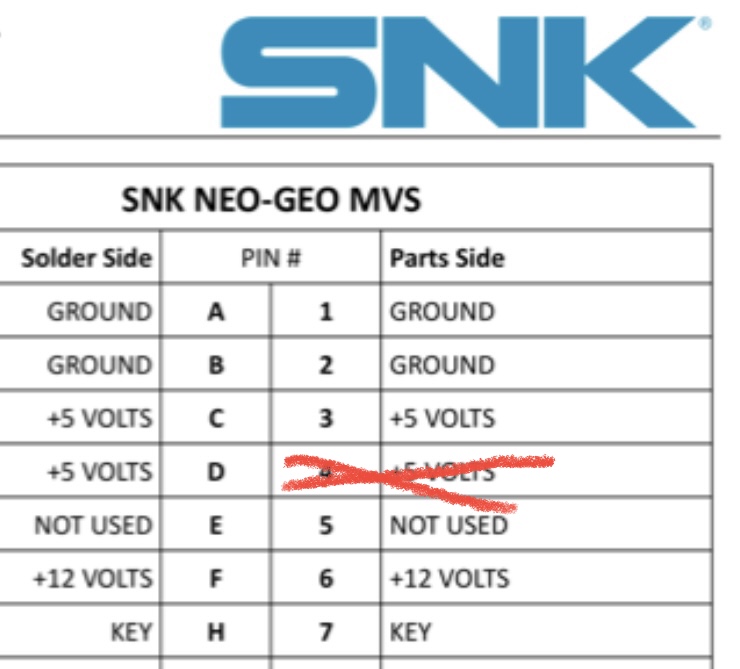

Confirmed and works fine. Also the System Wiring Diagram in the manual shows number 4 on the main pcb edge not connected to anything also. Thanks for your help!
