small thing but hey, if it can help someone why not share it.
I was missing two of these neotec remote boards
first time replicating something and using kicad, which was fun:
it's a little bigger then the other one but hey, you have space!

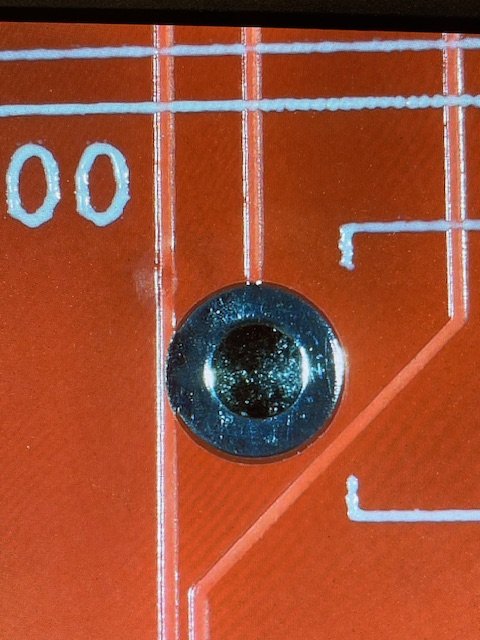

I wish I could say "first time 100%" but there was a tiny thing I didn't foresee:
which connect the two points...
I had to cut it to make the vertical size work.

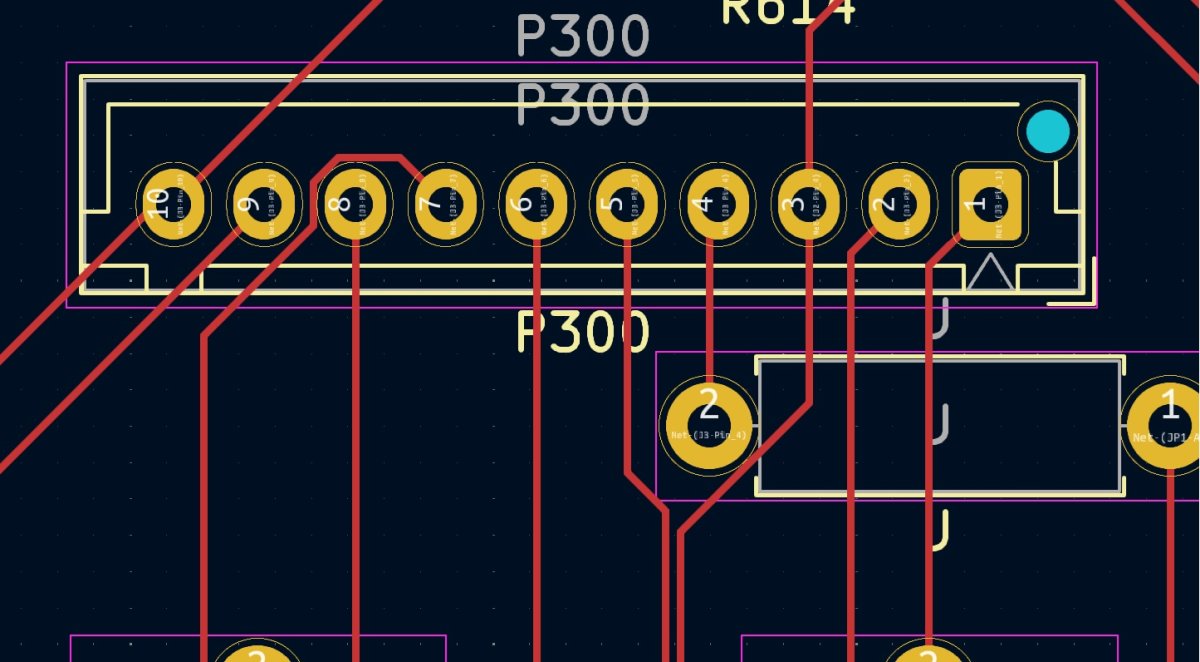

I fixed it:
find the gerber files attached, which you can upload to jcpcb and order 5 for 3.88$!
Parts:
2k(202): R405
10K(103): R321, R504, R613
50k(503): R309,R503
200k(204): R602,R303
I got from: (I'll be missing some 10k for 5 boards!)
https://www.amazon.ca/-/fr/BOJACK-Lot-résistances-variables-Potentiomètre/dp/B07WHJMVR4
cf 1/4w 2.2k R612
cf 1/4w 4.7k R614
cf 1/4w 68k R605
cf 1/4w 150k R604
JST XH 2.5MM 2p P400
JST XH 2.5MM 4p P600
JST XH 2.5MM 10p P300
BOM https://www.digikey.ca/short/d7q5n55b
