MiSTercade V2

Whups sorry looks like I had the video set to line in the adc test

Here are the results set back to 3.3 and saved in adc settings

Pin 12 Video Red= 0.332V
Pin 13 Video Blue= 0.338V
Pin N Video Green= 0.310V

Astro_jamma said:
Whups sorry looks like I had the video set to line in the adc test

Here are the results set back to 3.3 and saved in adc settings

Pin 12 Video Red= 0.332V
Pin 13 Video Blue= 0.338V
Pin N Video Green= 0.310V
Click to expand...
Are you using a scope or a multimeter for these readings?

TodoRojo said:
Are you using a scope or a multimeter for these readings?
Click to expand...

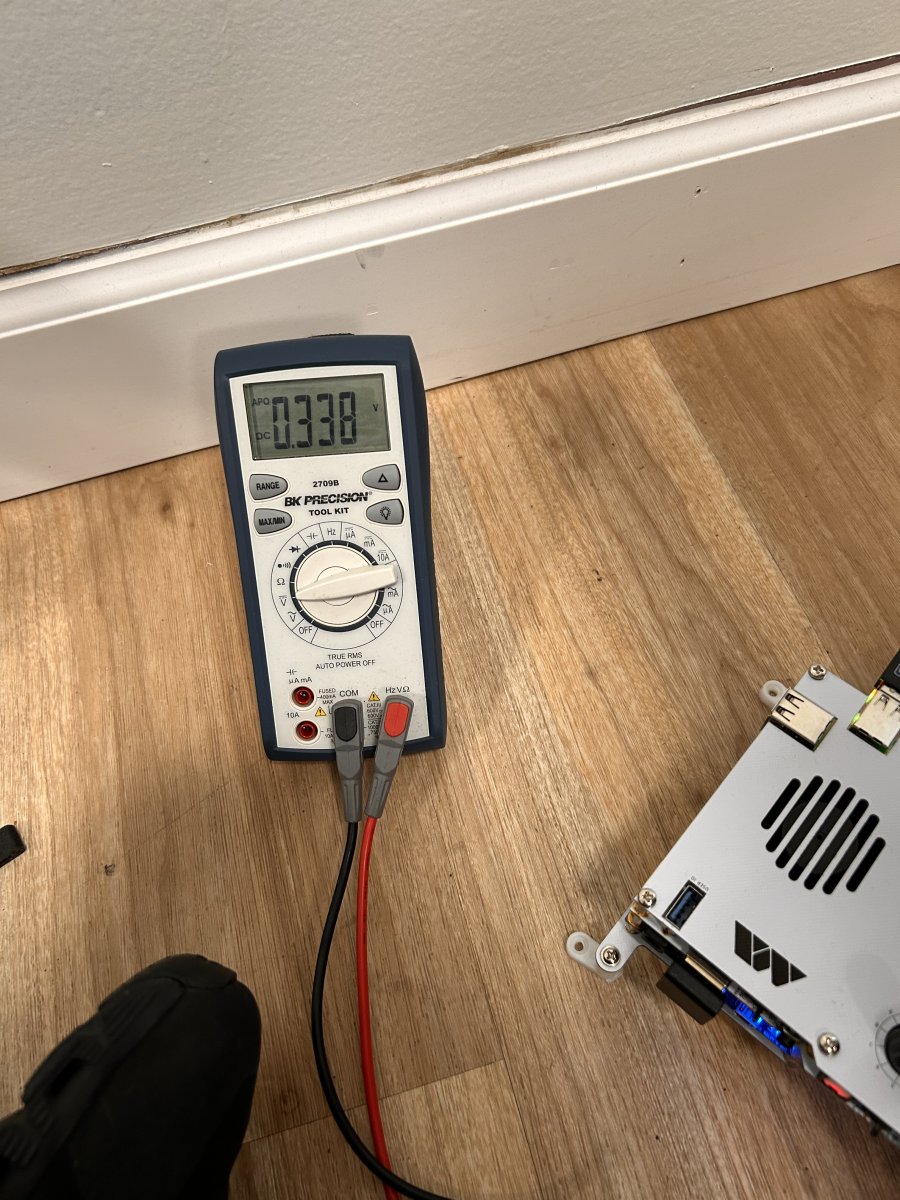

I'm using a multimeter, but I can grab my scope if that would help.


Attachments

  • image_67200257.JPG
    219.3 KB · Views: 45

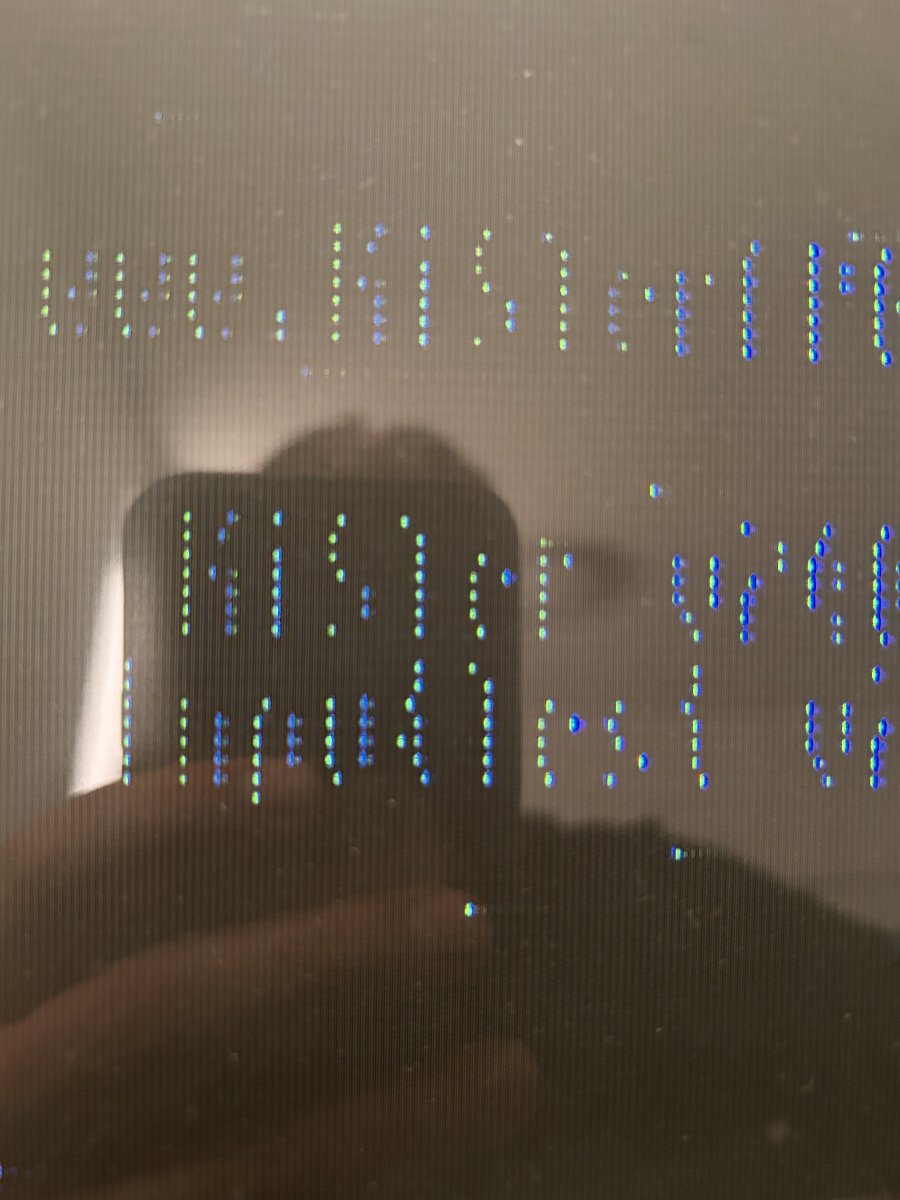

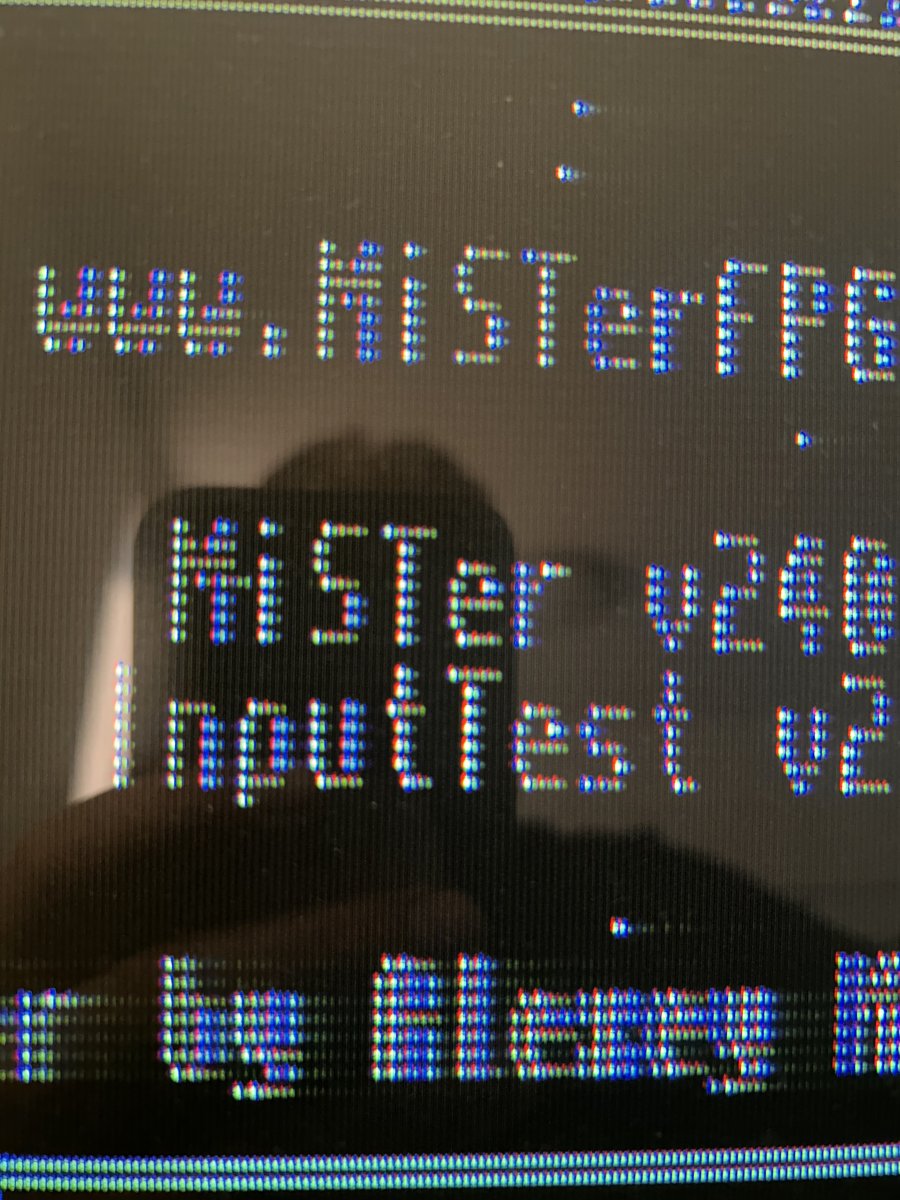

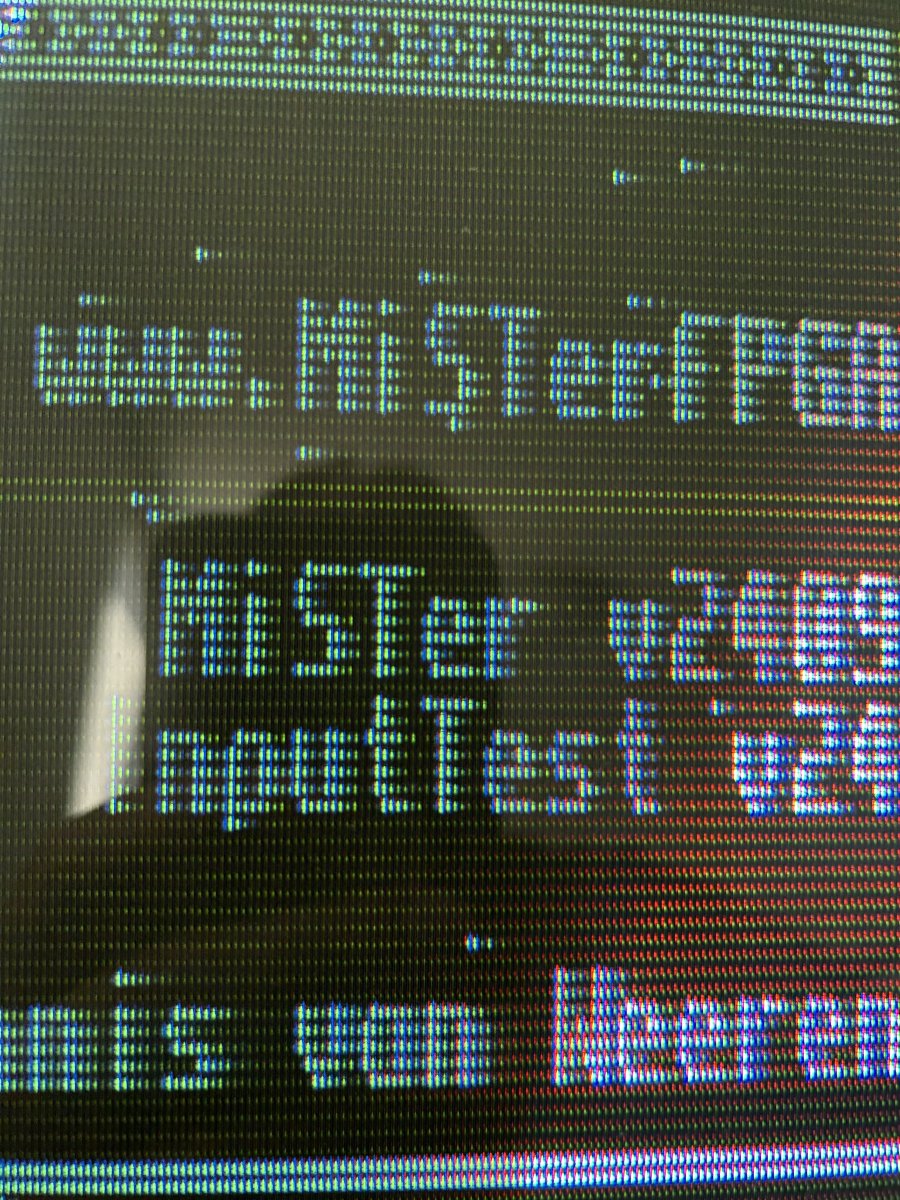

Here’s a good way to really show what’s happening. With text displayed on the screen if I turn the brightness all the way down this is what I’m seeing as part of the distortion.


Attachments

  • IMG_2588.jpeg
    362.5 KB · Views: 70
  • IMG_2587.jpeg
    210.1 KB · Views: 69
  • IMG_2586.jpeg
    133.9 KB · Views: 69

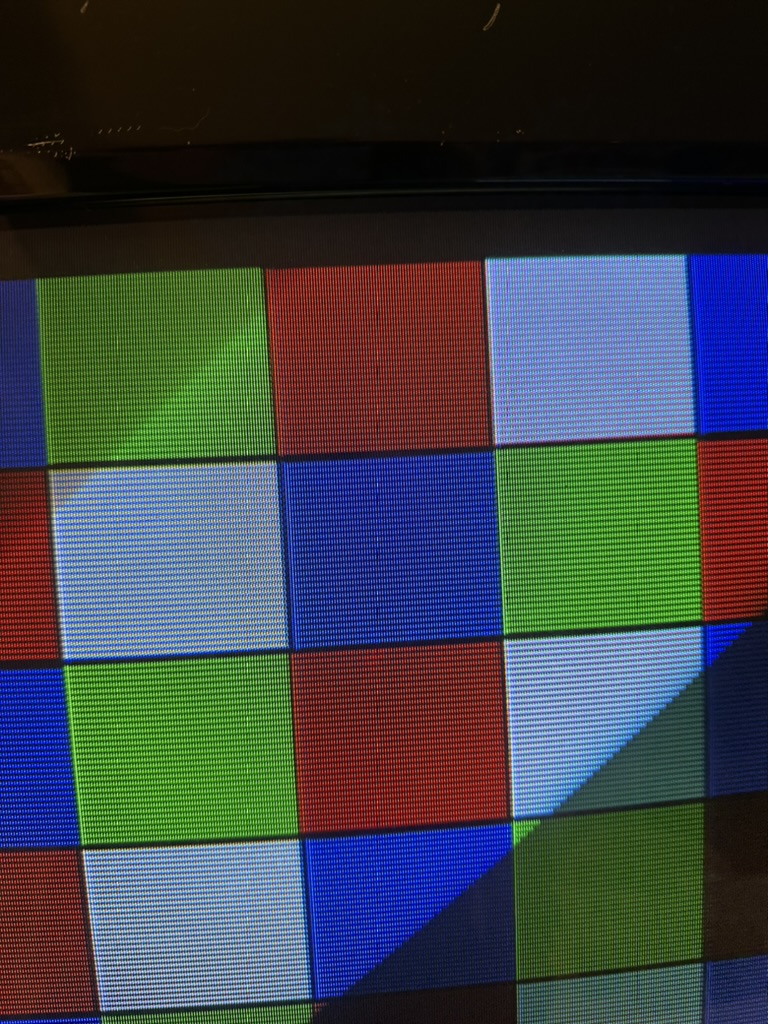

Here's a picture I took from the 240p test suite. It looks like Blue is shifted down and to the right, there are supposed to be gaps.

Hello Everyone,

I've been doing a lot of reading the past 24 hours. And I think I understand my situation, but I wanted to throw it out there in case there is something I missed. I own a horizonal cabinet from the 80s. I have my brand new mistercade version 2 working nicely connected to the jamma interface. However, with FPGA and with an original cabinet running a horizontal 15Khz monitor, there is no way to rotate the screen 90 degrees to play Vertically Oriented games, even in a downgraded emulated sense. I would need either a second cab vertically aligned, or I would need to physically rotate my CRT 90 degrees in the cab (at which point the horizontally oriented games will be off 90 degrees), or pull the CRT and replace it with a modern HDMI monitor. Could I trouble someone to verify that my research is accurate and I didn't miss anything, before I consider my options.

Appreciate any and all responses.

Sledgehound said:
Hello Everyone,

I've been doing a lot of reading the past 24 hours. And I think I understand my situation, but I wanted to throw it out there in case there is something I missed. I own a horizonal cabinet from the 80s. I have my brand new mistercade version 2 working nicely connected to the jamma interface. However, with FPGA and with an original cabinet running a horizontal 15Khz monitor, there is no way to rotate the screen 90 degrees to play Vertically Oriented games, even in a downgraded emulated sense. I would need either a second cab vertically aligned, or I would need to physically rotate my CRT 90 degrees in the cab (at which point the horizontally oriented games will be off 90 degrees), or pull the CRT and replace it with a modern HDMI monitor. Could I trouble someone to verify that my research is accurate and I didn't miss anything, before I consider my options.

Appreciate any and all responses.
Click to expand...
You pretty much hit the nail on the head man. You're not rotating the image on a crt only on an lcd. That's how the collection starts growing :D

Sledgehound said:
Appreciate any and all responses.
Click to expand...

I can also confirm that your research is correct. The MiSTer itself will only rotate the image if you enable vga_scaler, disable direct_video and force the output resolution to 15khz in the mister.ini file:

vga_scaler=1
direct_video=0
video_mode=320,8,32,24,240,4,3,16,6048

NOTE: these settings are from when I experimented with CRT rotation on MiSTer a few years back. They may not work with the current MiSTer framework.

Even if these settings work for you, the top and bottom edges of vertical games will be severely cut off. Some late model cab CRTs support higher resolutions than 15khz but a cab from the 80s won’t. If you want to stay with a CRT in your cab (and I hope you do) consider a PC monitor for a swap rather than a flat panel display - they display higher resolutions than 15khz that will look good when the image is rotated. But realistically buying a second cab just for vertical games is what most of us here on AP have done. :thumbsup:

My Mistercade V2 is dim as well, no matter what monitor or cabinet it’s in, dim on k7000, k7400, nanaos and Toshiba pf
The color pots came turned all the way for full color already so the only adjustment you can do is make the image dimmer

Is there a fix for that in the works?
My Mistercade v2 is just sitting collecting dust.

Red-Vette said:
My Mistercade V2 is dim as well, no matter what monitor or cabinet it’s in, dim on k7000, k7400, nanaos and Toshiba pf
The color pots came turned all the way for full color already so the only adjustment you can do is make the image dimmer

Is there a fix for that in the works?
My Mistercade v2 is just sitting collecting dust.
Click to expand...
Did you adjust the brightness pot on your chassis remote pcb? I haven't had that particular issue.

Astro_jamma said:
I'm using a multimeter, but I can grab my scope if that would help.
Click to expand...
It could give us a better idea of peak voltages. I'd put a color bar up through CPS2 or something and see what the peak voltages are on the scope.

Red-Vette said:
My Mistercade V2 is dim as well, no matter what monitor or cabinet it’s in, dim on k7000, k7400, nanaos and Toshiba pf
The color pots came turned all the way for full color already so the only adjustment you can do is make the image dimmer

Is there a fix for that in the works?
My Mistercade v2 is just sitting collecting dust.
Click to expand...
With my Mistercade Versus I have to bump the brightness a bit on my MS8 monitor. That should take care of it for you.

Peak voltages on the Red, Green and Blue lines should be 3.3V. It was tuned to match the Neo Geo MV1C PCB.

I just tested the Mistercade V2 on my Neo 29 cab(Hitachi-GMK-29FS2) with the JNX big red adapter and it looks amazing. The issue seems to be only on my New Astro City.
With that said it rules out a defective product and now I'm looking into what could be causing the issue on the NAC. I'm going to install a 3 prong with dedicated ground today.
Also can anyone confirm that Frame ground/Field Ground is separate from the monitors chassis ground on their Astro City or New Astro City?
I just want to make sure that its normal for the monitor to have a isolated ground.

ShootTheCore said:
Peak voltages on the Red, Green and Blue lines should be 3.3V. It was tuned to match the Neo Geo MV1C PCB.
Click to expand...

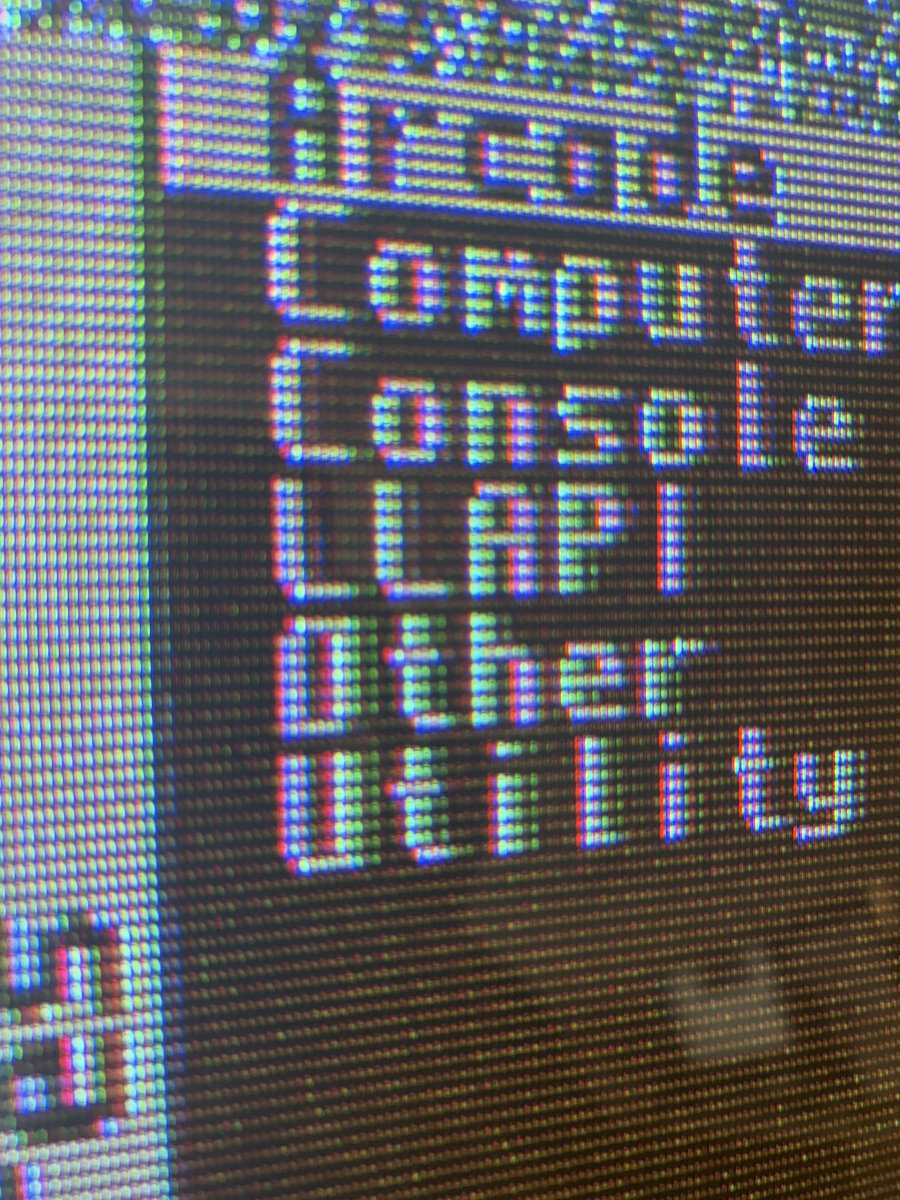

Yeah after checking, I really don't think this is a video out signal issue.
Its some sort of interference, you can see it start to fill in slowly from boot up.
I'm leaning towards a grounding issue on this one.
"Garbage in garbage out" as the old saying goes

Converting to three prong now, I hope this works


Attachments

  • image.jpg
    189.8 KB · Views: 49
Astro_jamma said:
I just tested the Mistercade V2 on my Neo 29 cab(Hitachi-GMK-29FS2) with the JNX big red adapter and it looks amazing. The issue seems to be only on my New Astro City.
With that said it rules out a defective product and now I'm looking into what could be causing the issue on the NAC. I'm going to install a 3 prong with dedicated ground today.
Also can anyone confirm that Frame ground/Field Ground is separate from the monitors chassis ground on their Astro City or New Astro City?
I just want to make sure that its normal for the monitor to have an isolated ground.
Click to expand...
Yes, Astro monitors are floating

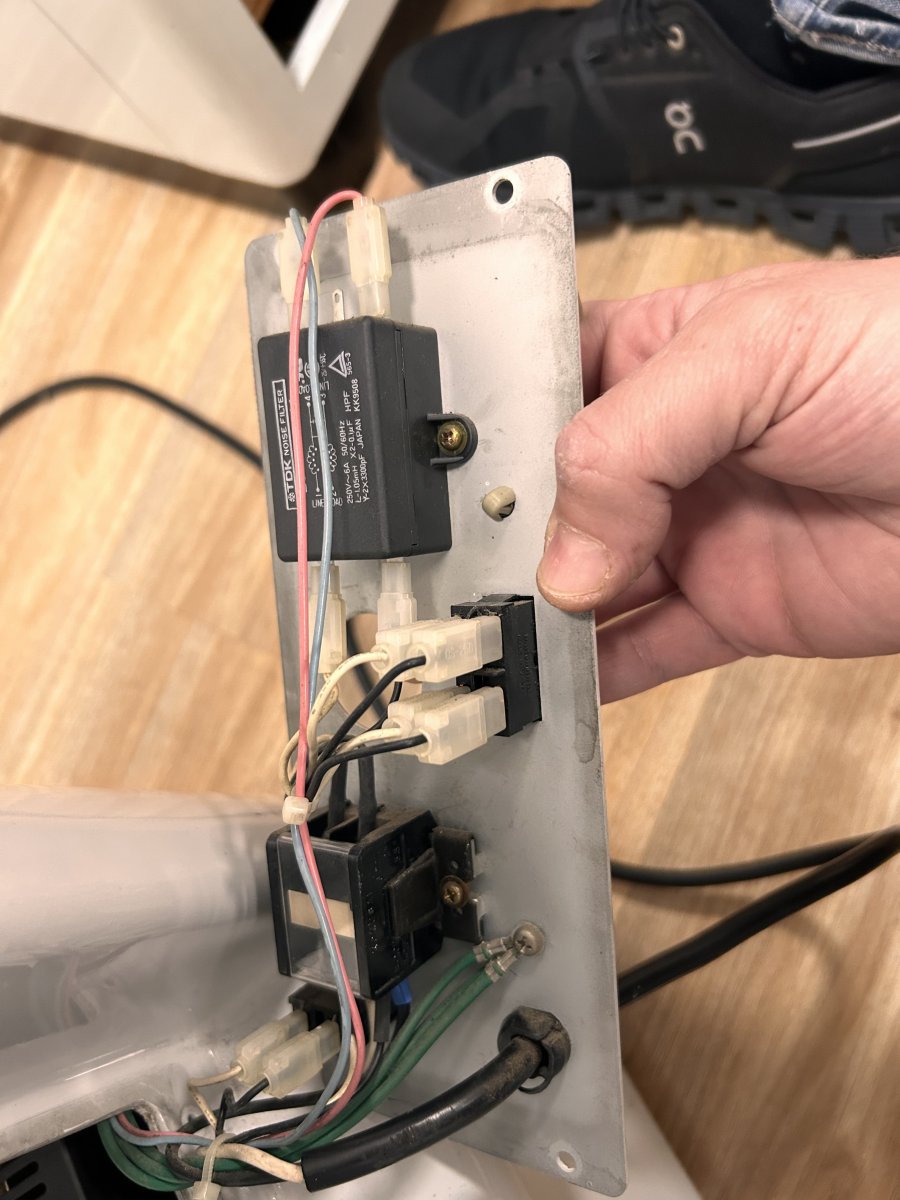

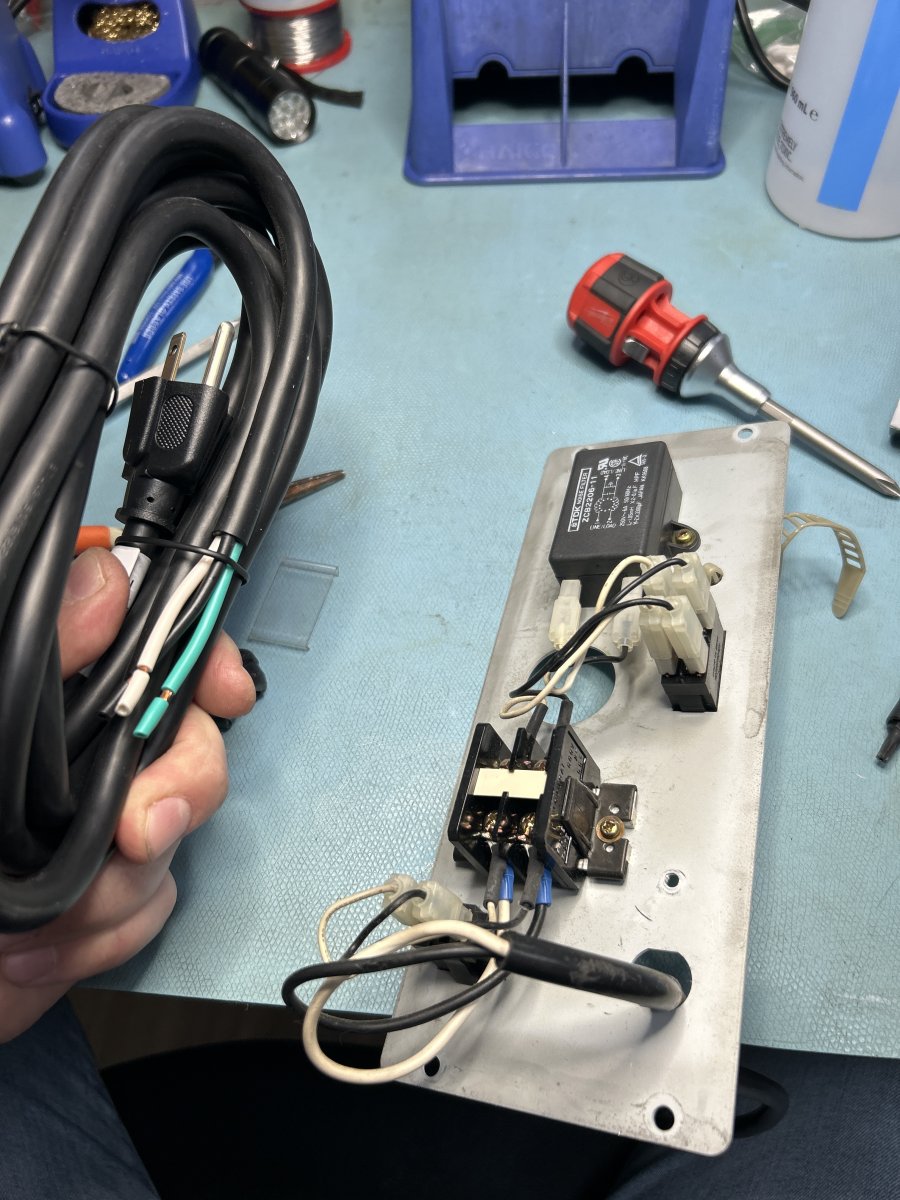

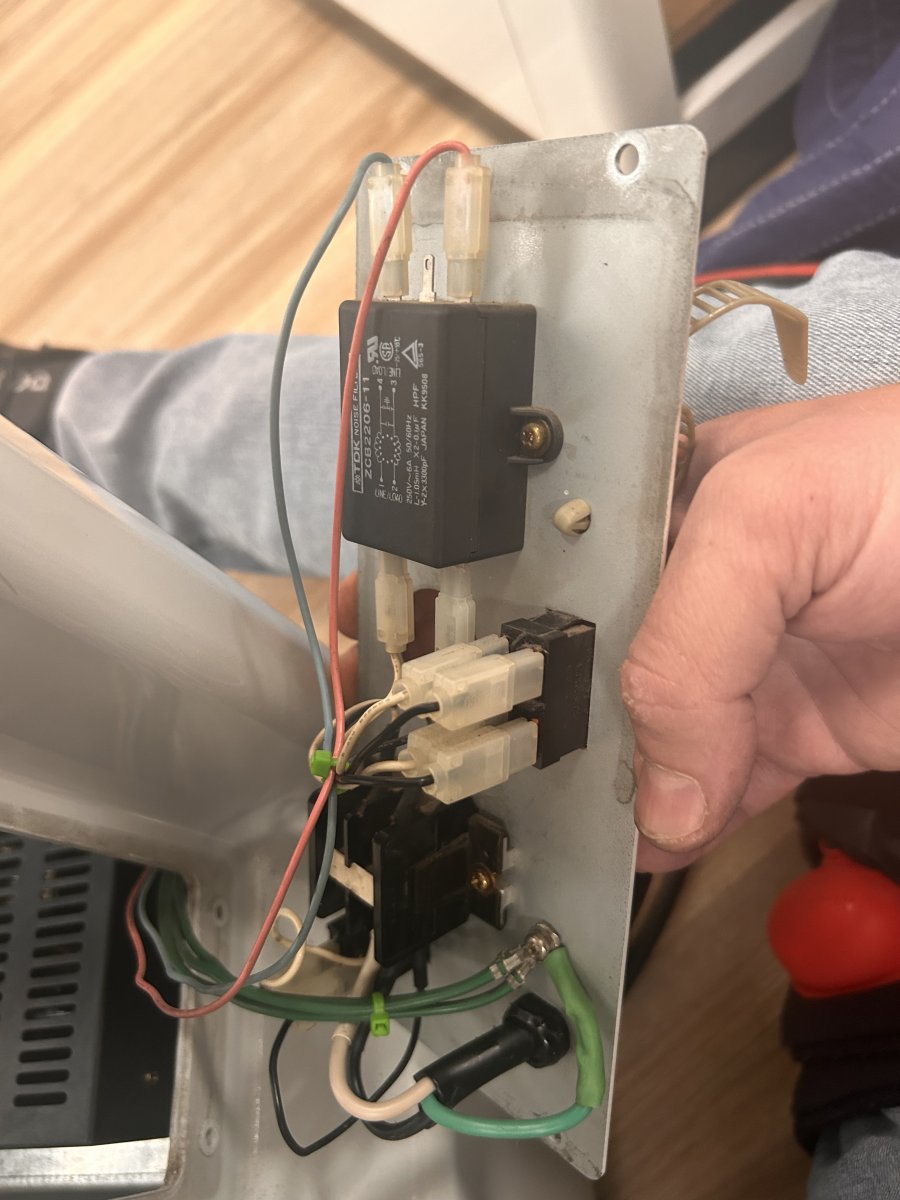

Okay I just finished replacing the two prong with the 3 prong and sadly it did not fix the color issue.


Attachments

  • IMG_2594.jpeg
    141.7 KB · Views: 51
  • IMG_2611.jpeg
    126.3 KB · Views: 49
  • image.jpg
    287.5 KB · Views: 55
