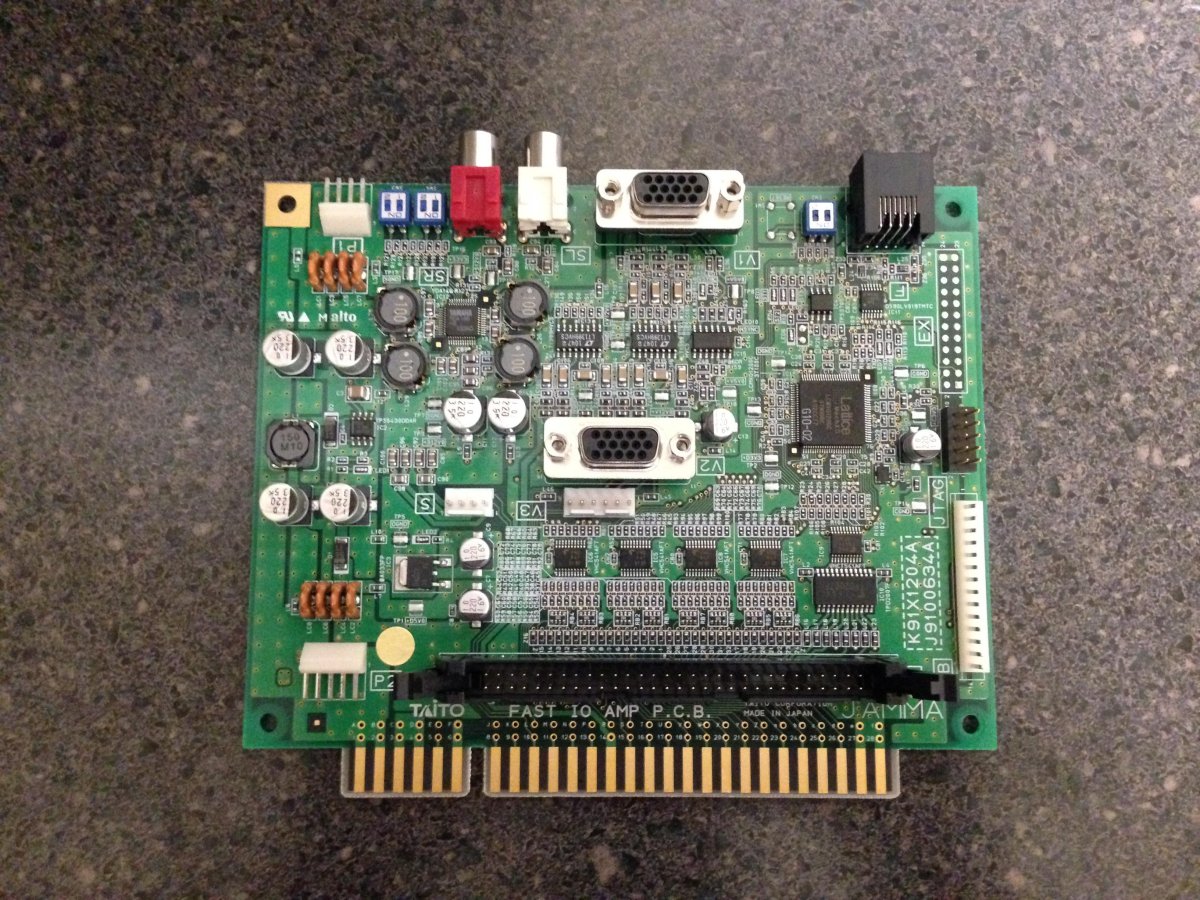

Bashi Enthusiast Joined Mar 30, 2022 Messages 128 Reaction score 38 Location Ontario Jun 2, 2024 #1 Hello, I am just about ready to install a Fast IO into a non JAMMA cabinet, my model is the one pictured here: Does anyone have a pinout for power connectors and which do I need to supply to power it for simple digital controls? Attachments vfiut0r.jpg 298.3 KB · Views: 29
Hello, I am just about ready to install a Fast IO into a non JAMMA cabinet, my model is the one pictured here: Does anyone have a pinout for power connectors and which do I need to supply to power it for simple digital controls?
Bashi Enthusiast Joined Mar 30, 2022 Messages 128 Reaction score 38 Location Ontario Jun 2, 2024 #2 I think I found it, I just want to confirm P1 Connector should be power with the yellows being +12V and black of course being ground? Attachments i-img1200x900-1673228185ll0lwb2308.jpg 318.4 KB · Views: 21
I think I found it, I just want to confirm P1 Connector should be power with the yellows being +12V and black of course being ground?
Derick2k Immortal Joined Nov 14, 2015 Messages 10,378 Reaction score 11,791 Location NYC, USA Jun 2, 2024 #3 Here is the pinout
